Hue Custom Database Tutorial
This page explains how to configure Hue with a custom database from end to end by migrating your existing database and synching to a new custom database. Learn how to switch databases for:
- A new installation of CDH, with the Cloudera Manager Installation Wizard
- An existing installation of CDH, with the Cloudera Manager Admin Console.

Prepare Hosts
Create, or prepare, five machines, each with CentOS 6 and at least 8 GB of RAM:
- Create a cluster of four machines. Name them cdh-cluster-[1-4].<your domain>.com.
- Create one machine for the database. Name it cdh-db.<your domain>.com.
Install Custom Database
Install MySQL on the single machine you designated for this purpose (cdh-db.<your domain>.com).
- Install MySQL server on cdh-db.<your domain>.com:
sudo yum install -y mysql-server
- Start the server:
sudo service mysqld start
- Secure your installation:
sudo /usr/bin/mysql_secure_installation
Enter current password for root (enter for none): [Press Enter if the password is unset] OK, successfully used password, moving on... [...] Set root password? [Y/n] Y New password: Re-enter new password: Remove anonymous users? [Y/n] Y [...] Disallow root login remotely? [Y/n] N [...] Remove test database and access to it [Y/n] Y [...] Reload privilege tables now? [Y/n] Y
- Configure /etc/my.cnf:
[mysqld] ... bind-address=0.0.0.0 default-storage-engine=innodb sql_mode=STRICT_ALL_TABLES
- Restart the server
sudo service mysqld restart
- Log on with your new root password:
mysql -u root -p<root password>
- Create the hue database with UTF8 collation and configure the hue user (with your own password):
create database hue collate = 'utf8_general_ci'; grant all on hue.* to 'hue'@'%' identified by 'huepassword'; quit
Install CM and CDH
In this section, we test connecting to a custom database with the installation wizard; then we undo the connection so we can connect with the admin console in Dump, Synchronize, and Load.
Run Easy Install on one machine in the cluster (and stop at the Database
Setup page). As a reminder:
- Install Cloudera Manager on on cdh-cluster-1.<your domain>.com:
## Download Cloudera Manager to your package manager source directory. wget https://archive.cloudera.com/cm5/redhat/6/x86_64/cm/cloudera-manager.repo -P /etc/yum.repos.d/ ## Install Cloudera Manager and Dependencies (sourced from the Cloudera Manager repo) sudo yum install -y oracle-j2sdk1.7 sudo yum install -y cloudera-manager-daemons cloudera-manager-server sudo yum install -y cloudera-manager-server-db-2 ## Start the database and server sudo service cloudera-scm-server-db start sudo service cloudera-scm-server start
- Log on to Cloudera Manager at http://cdh-cluster-1.<your domain>.com:7180/.
- Follow the installation wizard to the Database Setup page.
- Connect to your custom database, then reconnect to the embedded database before moving on:
- Select Custom Database, set parameters, and Test Connection and stop
!
DB Hostname = cdh-db.<your domain>.com:3306 DB Type = MySQL DB Name = hue Username = hue Password = <hue password set when granting hue permissions>
- After successfully connecting to MySQL, reset the hostname and database type to PostgreSQL.
- Select Embedded Database and again, click Test Connection.
Note: Before moving on, click Show Passwords and copy the Hue password for safe-keeping.
- After successfully connecting to the embedded database, click Continue. We reconnect to MySQL in Dump, Synchronize, and Load, after migrating the embedded database.
- Select Custom Database, set parameters, and Test Connection and stop
- Finish the wizard, go to the Hue service and click Hue Web UI to open Hue.
- Assign a username/password and log on.
Populate Database (optional)
Populate the Hue database with user account information, a Hive query, and an Oozie workflow (to ensure that the database migration works).
Dump, Synchronize, and Load
To connect to other supported databases, see Hue Custom Databases.
- Stop the Hue service: go to Hue and select .
Note: Refresh the page if the Hue service does not look stopped:
.
- Dump the existing database:
- Select .
- Click Dump Database. The file is written to /tmp/hue_database_dump.json on the host of the Hue server.
- Log on to the host of the Hue server in a command-line terminal.
- Edit /tmp/hue_database_dump.json by removing all objects with useradmin.userprofile in the
model field. For example:
# Count number of objects grep -c useradmin.userprofile /tmp/hue_database_dump.json
vi /tmp/hue_database_dump.json
{ "pk": 1, "model": "useradmin.userprofile", "fields": { "last_activity": "2016-10-03T10:06:13", "creation_method": "HUE", "first_login": false, "user": 1, "home_directory": "/user/admin" } }, { "pk": 2, "model": "useradmin.userprofile", "fields": { "last_activity": "2016-10-03T10:27:10", "creation_method": "HUE", "first_login": false, "user": 2, "home_directory": "/user/alice" } },
- Connect Hue to the new MySQL database:
- Go to .
- Filter by category, Database.
- Set the following database parameters :
DB Hostname = <fqdn of host with postgres server>:3306 DB Type = <PostgreSQL> DB Name = hue Username = hue Password = <hue database password set when granting hue permissions>
- Click Save Changes.
- Synchronize the new database: select Synchronize Database. and click
- Load the database after removing the foreign key constraint:
- Log on to the host of the MySQL server in a command-line terminal.
- Delete the foreign key constraint and clean the table, django_content_type:
mysql -u root -p

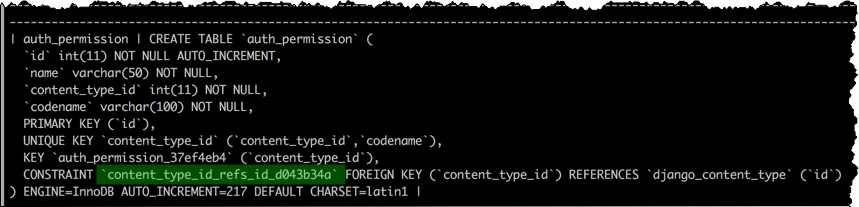

SHOW CREATE table hue.auth_permission; ALTER TABLE hue.auth_permission DROP FOREIGN KEY content_type_id_refs_id_<input id>;
DELETE FROM hue.django_content_type;
- In Cloudera Manager, load the JSON file: select Load Database. and click
- Add the foreign key back:
ALTER TABLE hue.auth_permission ADD FOREIGN KEY (content_type_id) REFERENCES django_content_type (id);
- Start the Hue service: select Start. If you went through Use Hue, ensure your data was migrated properly. and click
